主要特点：

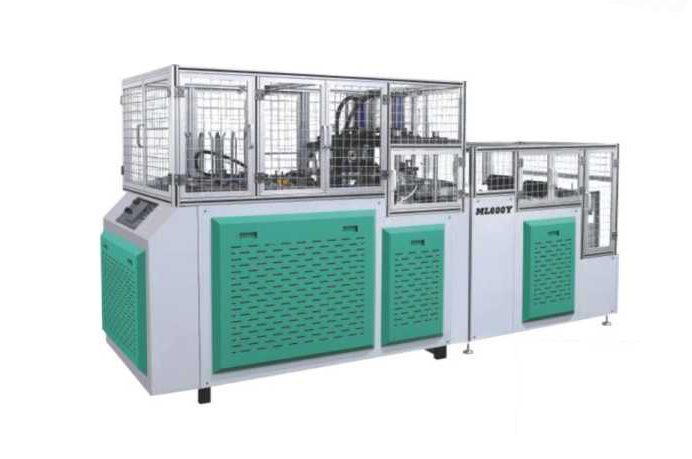

ML600Y-GP型高速智能纸碟机采用台式布局，将传动部件和模具隔离开来。 传动部件在桌子底下，模具在桌子上，这种布局便于清洁和维护。 该机采用自动润滑，机械传动，液压成型，气动吹纸，性能稳定，操作维修方便。
Main Characteristic:
ML600Y-GP type high-speed & intelligent paper plate machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are underthe desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts automatic lubrication, mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance.
Main Technical Parameters | |||
型号 | Model | ML600Y-GP | ML600Y |
纸盘尺寸 | Paper Plate Size | 4-15〃 | |
纸张克重 | Paper Grams | 100-800g/㎡ | |
纸材料 | Paper Materials | Base paper, whiteboard paper, white cardboard, aluminum foil paper or others | |
容量 | Capacity | Double Stations 80-140pcs/min | |
电源要求 | Power Requirements | 380V 50HZ | |
总功率 | Total Power | 8kw | |
重量 | Weight | 1400kg | |
机器尺寸 | Specifications | 3700x1200x2000mm | 3700x1200x1900mm |
供气要求 | Air Supply Requirement | 0.4Mpa, 0.3cube/min | |
其他注意事项 | Other Notes | Customize | |
油缸 | Oil Cylinder | ML-63-150-5T-X | |
气缸行程 | Cylinder Stroke | 150mm | |
