TYSB-12自动纸杯成型及纸杯手柄固定机
本机是我公司经济，经典的纸杯成型机，可以制作4-12oz的纸杯，也可以选装电热器和超声波封口机，手提机也由本机制造。 纸杯成型与杯柄切割和密封在一起形成。 我们设计了两个切割装置，用于切割纸底和纸柄。 如果您希望机器不切掉杯柄，并且在使用本机之前先将其切掉，我们也可以接受定制设计。

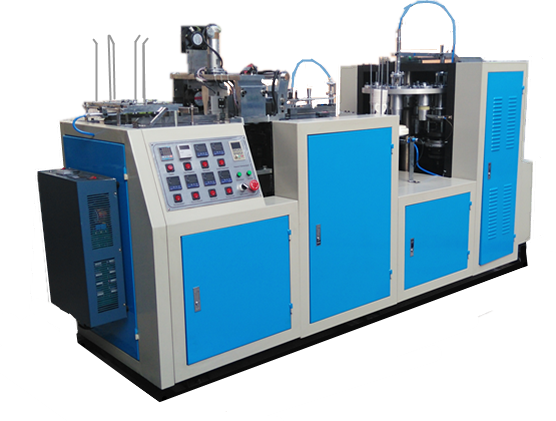

TYSB-12 Automatic Paper Cup Forming & Paper Cup Handle Fixing Machine
This machine is our economical and classical paper cup forming machine which can make cups 4-12oz, can take electrical heater and ultrasonic sealing as option, handle applicator is made in this machine too. The paper cup forming and cup handle cutting and sealing are formed together. We design two cutting devices for cutting both paper bottom and paper handle. If u want the machine without cutting cup handle, and cut the handle before used in this machine, we can also accept the customized design.
TECHNICAL DATA | |||
型号名称 | model name | TYSB-12 | |
适用尺寸 | Suitable Size | 2oz-12oz(mold changeable) | |
原材料 | Raw Material | 180-280gsm single/double PE coated paper | |
定量生产率 | Ration Productivity | 40-50pcs/ min | |
空气压力 | Air Pressure | 0.4 m3/min(need to buy an air compressor) | |
空气流动 | Air Flow | >0.6Mpa | |
总功率 | Total power | 5.0-6.0 KW | |
适用尺寸 | Suitable Size | 2oz-12oz(mold changeable) | |
净重/毛重 | N.W./G.W. | 1600kg/1700kg | |
电力 | Electric Power | 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type | |
外形尺寸 | Overall dimensions | 2800L*1300W*1720H(mm) | |
全自动手柄切割 | Full automatic handle cutting | NO |
|
手柄密封（超声波） | handle sealing(ultrasonic) | yes |
|
杯模 | cup mold | changeable |
|
手柄模具 | handle mold | fixed |
|
